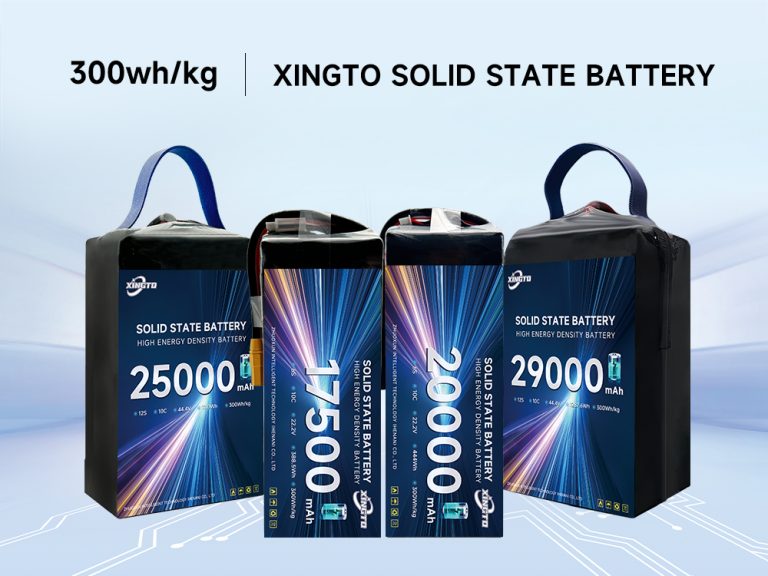

A 300Wh/kg drone battery refers to a high energy density lithium battery capable of delivering more power while maintaining a lighter weight. Compared to conventional batteries, it significantly improves flight endurance and efficiency.
| Energy Density | Key Feature | Application |
|---|---|---|
| 275Wh/kg | Cost-effective | Entry-level drones |
| 300Wh/kg | Balanced performance | Industrial UAV |
| 320Wh/kg | High performance | Mapping / inspection |
| 500Wh/kg | Ultra endurance | Advanced UAV |
| Capacity | 17.5Ah-29Ah |
| Nominal voltage | 22.2v/88.8v |
| Energy density | 300wh/kg |
| Power | 388.5-2575.2wh |
| Charge rate | 1C |
| Discharge rate | 10C |
| Battery size | customizable |
| Battery weight | 1.48-9.36kg |
| Cycle life | 1000Times |
| OEM/ODM | Supports special customization such as LOGO, plug, capacity, etc. |
| Plug | T/XT60, XT90, AS150U, QS5, QS9, QS10, A S250, AS150/customization supported |
| Samples | Test samples and technical support available |
| Certification | CE/Rohs/UN38.3/MSDS |
| Applicable models | Applicable to multi-rotor, fixed-wing, vertical take-off and landing, large and medium-sized drones and other industry drones, suitable for most models on the market |
| Application scenarios | Used in logistics and transportation, communication relay, safety inspection, information service emergency management, security monitoring, firefighting and disaster relief, surveying and mapping and geographic information, etc. |
| Warranty period | 12 months or 300 cycles |
| Number | Energy density | Model | L*W*T(±3mm) | Weight(±200g) | Power | Full voltage | Rated voltage | C-rate |
| 1 | 300Wh/kg | ZXGT004-6S17.5AH | 75*48*193 mm | 1.48kg | 388.5wh | 25.2V | 22.2V | Peak discharge rate 10c Constant discharge rate 3-5c |
| 2 | ZXGT001-6S20AH | 75*52*193 mm | 1.70kg | 444wh | 25.2V | 22.2V | ||
| 3 | ZXGT001-6S25AH | 66*76*193 mm | 2.02kg | 555wh | 25.2V | 22.2V | ||
| 4 | ZXGT004-6S29AH | 90*60*213 mm | 2.38kg | 643.8wh | 25.2V | 22.2V | ||
| 5 | ZXGT004-8S17.5AH | 75*65*193 mm | 1.96kg | 518wh | 33.6V | 29.6V | ||
| 6 | ZXGT004-12S17.5AH | 75*96*193 mm | 2.93kg | 777wh | 50.4V | 44.4V | ||
| 7 | ZXGT001-12S20AH | 104*75*193 mm | 3.29kg | 888wh | 50.4V | 44.4V | ||
| 8 | ZXGT001-12S25AH | 132*76*193 mm | 4.25kg | 1110wh | 50.4V | 44.4V | ||
| 9 | ZXGT004-12S29AH | 120*90*213 mm | 4.70kg | 1287.6wh | 50.4V | 44.4V | ||
| 10 | ZXGT004-14S17.5AH | 115*75*193 mm | 3.11kg | 906.5wh | 58.8V | 51.8V | ||
| 11 | ZXGT001-14S20AH | 123*75*193 mm | 3.90kg | 1036wh | 58.8V | 51.8V | ||
| 12 | ZXGT001-14S25AH | 151*75*193 mm | 4.77kg | 1295wh | 58.8V | 51.8V | ||
| 13 | ZXGT004-14S29AH | 140*90*213 mm | 5.45kg | 1502.2wh | 58.8V | 51.8V | ||
| 14 | ZXGT004-18S17.5AH | 140*75*193 mm | 4.34kg | 1165.5wh | 75.6V | 66.6V | ||
| 15 | ZXGT001-18S20AH | 157*75*193 mm | 4.92kg | 1332wh | 75.6V | 66.6V | ||
| 16 | ZXGT001-18S25AH | 191*75*193 mm | 6.0kg | 1665wh | 75.6V | 66.6V | ||
| 17 | ZXGT004-18S29AH | 181*90*213 mm | 7.15kg | 1931.4wh | 75.6V | 66.6V | ||
| 18 | ZXGT004-24S17.5AH | 96*152*193 mm | 5.71kg | 1554wh | 100.8V | 88.8V | ||
| 19 | ZXGT001-24S20AH | 130*152*193 mm | 6.48kg | 1776wh | 100.8V | 88.8V | ||
| 20 | ZXGT001-24S25AH | 132*152*193 mm | 7.97kg | 2220wh | 100.8V | 88.8V | ||
| 21 | ZXGT004-24S29AH | 120*182*213 mm | 9.36kg | 2575.2wh | 100.8V | 88.8V | ||
| Other models can be customized | ||||||||
Q1: Is 300Wh/kg suitable for long flight drones?
Yes, it offers an excellent balance between weight and endurance.
Q2: How does it compare to 320Wh/kg?
300Wh/kg is more cost-efficient while still providing strong performance.
Q3: Can it be used for heavy payload drones?
Yes, especially when paired with high-discharge configurations.
