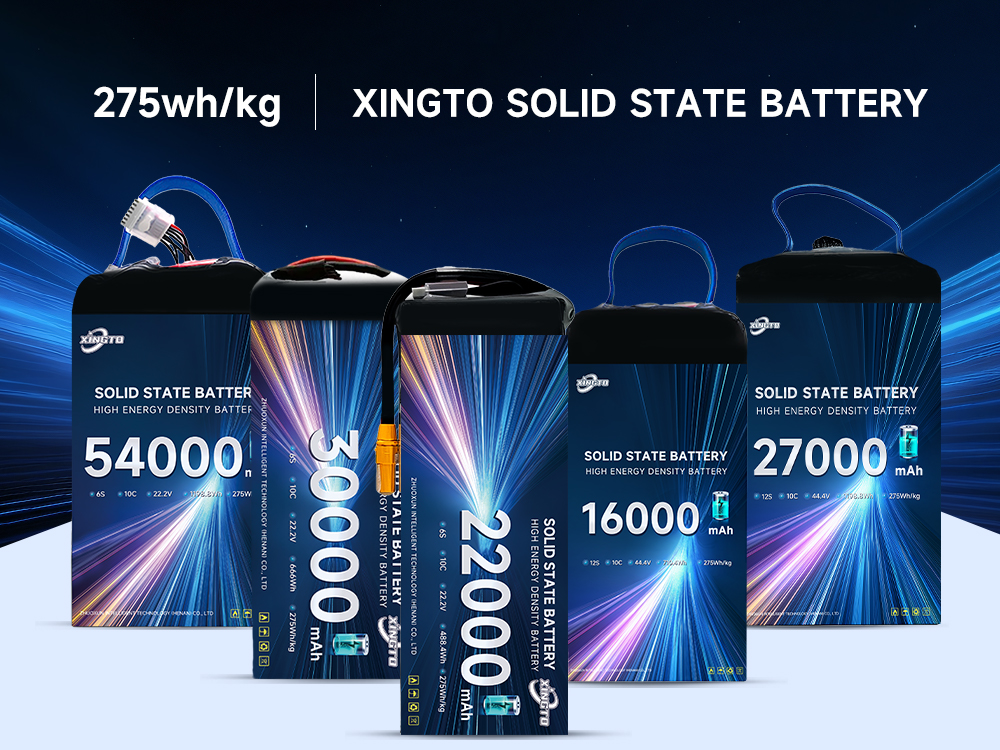

A 275Wh/kg drone battery is a cost-effective energy solution designed for UAV applications that require stable performance without the need for ultra-high energy density.
It is widely used in commercial drones where reliability and budget balance are key factors.
| Type | Feature | Advantage |
|---|---|---|
| Standard | Regular voltage | Cost-effective |
| HV Version | Higher voltage output | Improved efficiency & power |
| Number | Energy density | Model | L*W*T(±3mm） | Weight(±200g) | Power | Full voltage | Rated voltage | C-rate |
| 1 | 275Wh/kg | ZXGT001-4S16AH | 75*33*195 mm | 1.03kg | 236.8wh | 16.8V | 14.8V | Peak discharge rate 10c Constant discharge rate 3-5c |
| 2 | ZXGT001-6S16AH | 75*48*195 mm | 1.51kg | 355.2wh | 25.2V | 22.2V | ||
| 3 | ZXGT001-6S22AH | 75*64*195 mm | 1.98kg | 488.4wh | 25.2V | 22.2V | ||
| 4 | ZXGT001-6S27AH | 90*60*213 mm | 2.38kg | 599.4wh | 25.2V | 22.2V | ||
| 5 | ZXGT001-6S30AH | 89*70*213 mm | 2.65kg | 666wh | 25.2V | 22.2V | ||
| 6 | ZXGT001-6S54AH | 120*90*213 mm | 4.70kg | 1198.8wh | 25.2V | 22.2V | ||
| 7 | ZXGT001-7S27AH | 90*70*213mm | 2.73kg | 699.3wh | 29.4V | 25.9V | ||
| 8 | ZXGT001-8S16AH | 75*62*195mm | 2.10kg | 473.6wh | 33.6V | 29.6V | ||
| 9 | ZXGT001-12S16AH | 102*75*195 mm | 2.98kg | 710.4wh | 50.4V | 44.4V | ||
| 10 | ZXGT001-12S22AH | 130*75*195 mm | 3.95kg | 976.8wh | 50.4V | 44.4V | ||
| 11 | ZXGT001-12S27AH | 120*90*213 mm | 4.70kg | 1198.8wh | 50.4V | 44.4V | ||
| 12 | ZXGT001-12S30AH | 130*90*213 mm | 5.20kg | 1332wh | 50.4V | 44.4V | ||
| 13 | ZXGT001-12S44AH | 155*127*209(方形square） | 7.94Kg | 1953.6wh | 50.4V | 44.4V | ||
| 14 | ZXGT001-14S16AH | 115*75*195 mm | 3.25kg | 828.8wh | 58.8V | 51.8V | ||
| 15 | ZXGT001-14S22AH | 150*75*195 mm | 4.55kg | 1139.6wh | 58.8V | 51.8V | ||
| 16 | ZXGT001-14S27AH | 140*90*213 mm | 5.45kg | 1398.6wh | 58.8V | 51.8V | ||
| 17 | ZXGT001-14S30AH | 156*90*213 mm | 6.10kg | 1554wh | 58.8V | 51.8V | ||
| 18 | ZXGT001-18S16AH | 140*75*195 mm | 4.55kg | 1065.6wh | 75.6V | 66.6V | ||
| 19 | ZXGT001-18S22AH | 185*75*195 mm | 5.8kg | 1465.2wh | 75.6V | 66.6V | ||
| 20 | ZXGT001-18S27AH | 180*90*213 mm | 7.03kg | 1798.2wh | 75.6V | 66.6V | ||
| 21 | ZXGT001-18S30AH | 200*90*213 mm | 7.77kg | 1998Wh | 75.6V | 66.6V | ||
| 22 | ZXGT001-24S16AH | 96*152*195 mm | 6.0kg | 1420.8wh | 100.8V | 88.8V | ||
| 23 | ZXGT001-24S22AH | 153*150*220 mm | 8.26kg | 1953.6wh | 100.8V | 88.8V | ||
| 24 | ZXGT001-24S27AH | 125*182*213 mm | 9.31kg | 2397.6wh | 100.8V | 88.8V | ||
| 25 | ZXGT001-24S30AH | 130*182*213 mm | 10.37kg | 2664wh | 100.8V | 88.8V | ||
| 26 | ZXGT001-24S54AH | 240*180*213 mm | 18.60kg | 4795.2wh | 100.8V | 88.8V | ||
| 27 | ZXGT001-28S30AH | 156*180*213 mm | 12.5kg | 3219wh | 117.6V | 103.6V | ||
| Other models can be customized | ||||||||
| Number | Energy density | Model | L*W*T(±3mm） | Weight(±200g) | Power | Full voltage | Rated voltage | C-rate |
| 1 | 275Wh/kg | ZXGT003（HV)-6S25AH | 63*90*210mm | 2.47kg | 592.5wh | 26.7V | 23.7V | Peak discharge rate 10c Constant discharge rate 3-5c |
| 2 | ZXGT003（HV)-6S37AH | 69*107*226mm | 3.44kg | 875.9wh | 26.7V | 23.7V | ||
| 3 | ZXGT003（HV)-6S40AH | 74*107*226mm | 3.81kg | 978wh | 26.7V | 23.7V | ||
| 4 | ZXGT003（HV)-12S25AH | 126*90*210mm | 4.80kg | 1185wh | 53.4V | 47.4V | ||
| 5 | ZXGT003（HV)-12S37AH | 138*107*226mm | 6.80kg | 1753.8wh | 53.4V | 47.4V | ||
| 6 | ZXGT003（HV)-12S40AH | 147*107*226mm | 7.37kg | 1896wh | 53.4V | 47.4V | ||
| 7 | ZXGT003（HV)-14S25AH | 147*90*210mm | 5.60kg | 1382.5wh | 62.3V | 55.3V | ||
| 8 | ZXGT003（HV)-14S37AH | 160*107*226mm | 7.94kg | 2046.1wh | 62.3V | 55.3V | ||
| 9 | ZXGT003（HV)-14S40AH | 168*107*226mm | 8.69kg | 2212wh | 62.3V | 55.3V | ||
| 10 | ZXGT003（HV)-18S25AH | 190*90*210mm | 7.16kg | 1777.5wh | 80.1V | 71.1V | ||
| 11 | ZXGT003（HV)-18S37AH | 206*107*226mm | 10.10kg | 2630.7wh | 80.1V | 71.1V | ||
| 12 | ZXGT003（HV)-18S40AH | 220*107*226mm | 10.98kg | 2844wh | 80.1V | 71.1V | ||
| 13 | ZXGT003（HV)-24S25AH | 126*180*215mm | 9.68kg | 2370wh | 106.8V | 94.8V | ||
| 14 | ZXGT003（HV)-24S37AH | 138*212*230mm | 13.37kg | 3507.6wh | 106.8V | 94.8V | ||
| 15 | ZXGT003（HV)-24S40AH | 140*212*230mm | 14.50kg | 3792wh | 106.8V | 94.8V | ||
| 16 | ZXGT003（HV)-28S37AH | 147*214*230 mm | 16.1kg | 4092.2wh | 124.6V | 110.6V | ||
| 17 | ZXGT003（HV)-28S40AH | 168*214*230 mm | 17.2kg | 4424wh | 124.6V | 110.6V | ||
| Other models can be customized | ||||||||
Q1: Is 275Wh/kg enough for industrial drones?
Yes, for cost-sensitive and standard applications.
Q2: What is the difference between HV and standard?
HV provides higher voltage and better efficiency.
Q3: When should I choose 275Wh/kg?
When balancing cost and performance is important.
