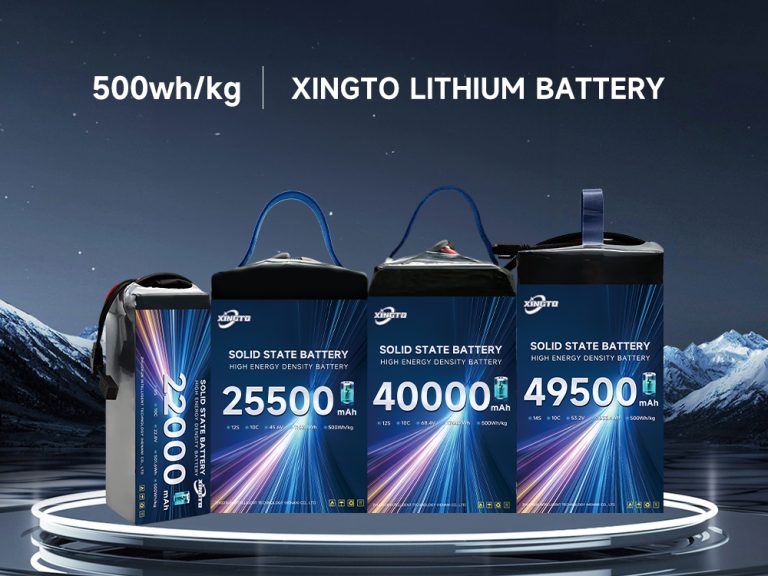

A 500Wh/kg drone battery represents ultra-high energy density technology, significantly surpassing traditional lithium batteries. It is designed for next-generation UAV systems that demand maximum endurance and minimal weight.
| Feature | 320Wh/kg | 500Wh/kg |
|---|---|---|
| Technology Level | Advanced | Next-generation |
| Flight Time | Long | Ultra-long |
| Weight Efficiency | High | Maximum |
| Application | Industrial UAV | Advanced UAV / R&D |
Q1: Is 500Wh/kg commercially available?
It depends on application level and customization requirements.
Q2: Who should use 500Wh/kg batteries?
Advanced UAV developers and high-end industrial users.
Q3: How much flight time improvement can it bring?
Significant improvement compared to 300–320Wh/kg systems.
| Number | Energy density | Model | L*W*T(±3mm） | Weight(±200g) | Power | Full voltage | Rated voltage | C-rate |
| 1 | 500Wh/kg | ZXGT004-6S22AH | 46*76*188 mm | 1.34kg | 501.6wh | 25.8V | 22.8v | Charging： 0--45° / 0.2C discharge： -20°--0°/0.3C 0--45°/1C |
| 2 | ZXGT004-6S25.5AH | 52*76*188 mm | 1.42kg | 581.4wh | 25.8V | 22.8v | ||
| 3 | ZXGT004-6S49.5AH | 74*92*208 mm | 2.56kg | 1128.6wh | 25.8V | 22.8v | ||
| 4 | ZXGT004-12S22AH | 87*76*188mm | 2.53kg | 1003.2wh | 51.6V | 45.6V | ||
| 5 | ZXGT004-12S25.5AH | 100*76*188 mm | 2.70kg | 1162.8wh | 51.6V | 45.6V | ||
| 6 | ZXGT004-12S49.5AH | 144*92*208 mm | 4.98kg | 2257.2wh | 51.6V | 45.6V | ||
| 7 | ZXGT004-14S22AH | 101*76*188mm | 3.01kg | 1170.4wh | 60.2V | 53.2V | ||
| 8 | ZXGT004-14S25.5AH | 116*76*188 mm | 3.30kg | 1356.6wh | 60.2V | 53.2V | ||
| 9 | ZXGT004-14S49.5AH | 167*92*208 mm | 5.96kg | 2633.4wh | 60.2V | 53.2V | ||
| 10 | ZXGT004-18S22AH | 129*76*188mm | 3.85kg | 1504.8wh | 77.4V | 68.4V | ||
| 11 | ZXGT004-18S25.5AH | 148*76*188 mm | 4.10kg | 1744.2wh | 77.4V | 68.4V | ||
| 12 | ZXGT004-18S49.5AH | 213*92*208 mm | 7.52kg | 3385.8wh | 77.4V | 68.4V | ||
| 13 | ZXGT004-24S22AH | 168*76*188mm | 5.46kg | 2006.4wh | 103.2V | 91.2V | ||
| 14 | ZXGT004-24S25.5AH | 100*152*188 mm | 5.80kg | 2325..6wh | 103.2V | 91.2V | ||
| 15 | ZXGT004-24S49.5AH | 144*184*208 mm | 10.36kg | 4514.4wh | 103.2V | 91.2V | ||
| 16 | ZXGT004-28S49.5AH | 167*182*208 mm | 11.92kg | 5128.2wh | 120.4V | 106.4V | ||
| Other models can be customized | ||||||||
